Bay and bow windows bring something flat glass simply can’t: a room that reaches outward, more usable square footage, and a wide, curved view of the street, the yard, or the water. In Tampa, where homes range from 1920s bungalows in Seminole Heights to newer coastal builds in South Tampa and Westchase, these projecting window systems show up on front elevations, breakfast nooks, and living rooms alike. TruePane Windows & Doors fabricates and installs impact-rated bay and bow configurations across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines. Every unit is engineered to your specific wind zone, and our crew installs it to hold. Call (813) 320-9346 to talk through your opening.
Product Overview - Bay & Bow Windows

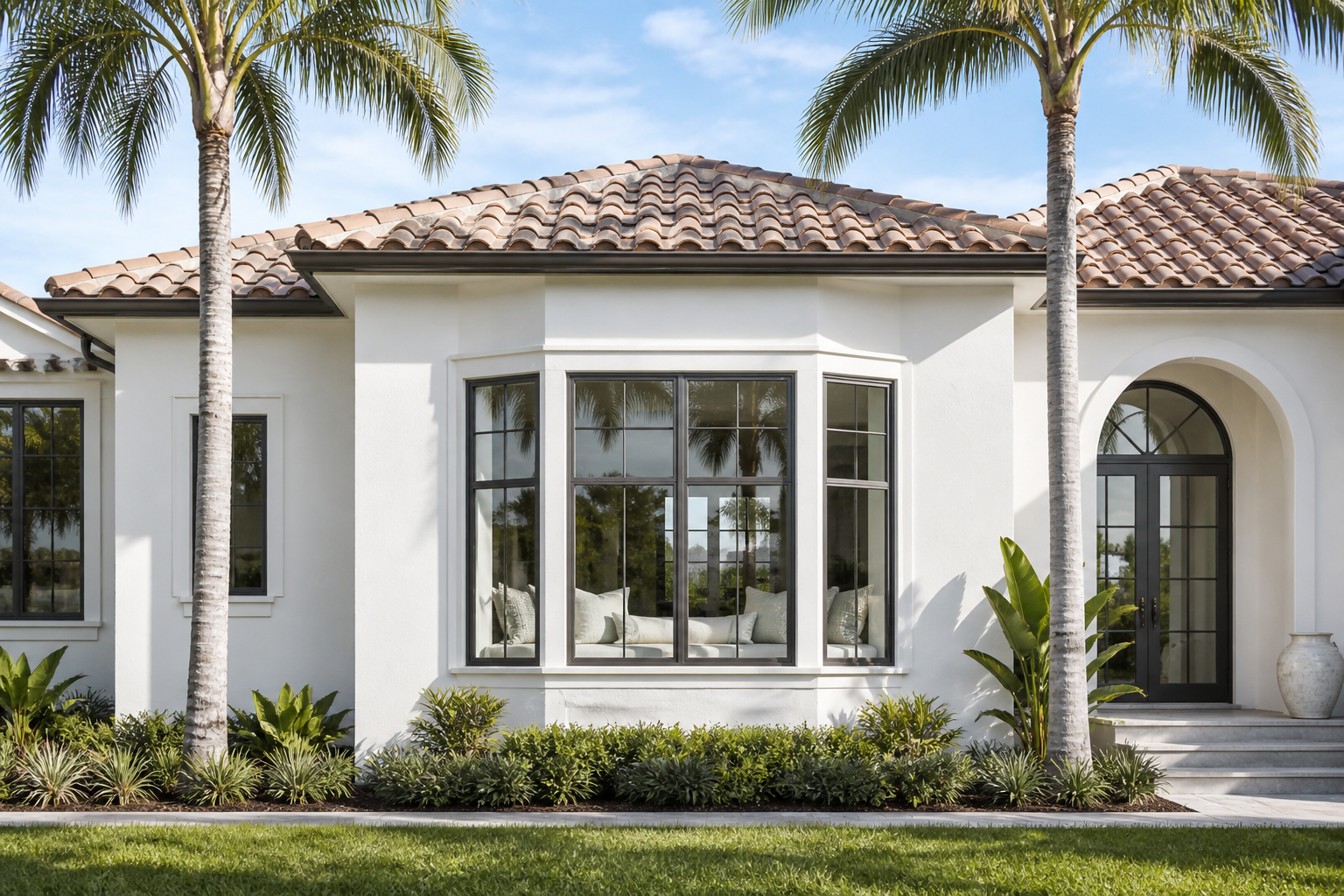

A bay window is typically a three-panel projection: a large fixed center unit flanked by two operable or fixed side units set at angles, usually 30 or 45 degrees. A bow window uses four or more panels arranged in a gentle arc. Both create a ledge, a seat area, or simply a deeper room that feels larger than its footprint on paper. The difference between the two comes down to geometry and look. Bays read more architectural and angular. Bows feel softer and more panoramic. Both work beautifully in Tampa’s mix of Mediterranean, coastal, and Craftsman home styles.
What separates a Florida-rated bay or bow from a decorative one is the glass and the framing. These units use laminated impact glass with a PVB interlayer that holds shattered glass in place under impact. The frames are structurally reinforced aluminum or vinyl, and the entire assembly gets custom fabricated to your rough opening rather than pulled from a stock size. That matters because projecting window systems carry more wind load than flat windows. The angles catch pressure differently, and the seat board or sill becomes part of the structural assembly. TruePane Windows & Doors has installed these across Hillsborough and Pinellas counties, and we order every unit to the design pressure your elevation requires.
Technical Specifications
We fabricate bay and bow windows to the opening rather than forcing an off-the-shelf size into a wall that wasn’t built for it. Here’s what goes into the product, reworded from the product data:
- Frame materials: Aluminum and vinyl. Aluminum for strength and thinner sightlines, vinyl for thermal performance and a softer interior look.
- Maximum size: Custom fabricated to the opening. Seat depth, projection depth, and panel count are set by your wall and your wind zone, not a catalog limit.
- Glass options: Laminated impact glass with PVB interlayer, Low-E insulated glass, tinted glass, and clear glass.
- Finish options: White, almond, bronze, black, and tan across both frame materials.
- Sill options: Standard sill or seat/shelf sill. The seat sill expands interior useable ledge space, which is what most Tampa homeowners want on a bay.
- Projection configurations: Three-panel bay, four- to six-panel bow, and custom angle fabrication where the architecture calls for it.
Hurricane & Compliance Performance
Laminated Impact Glass
The glass in every bay and bow unit we order carries a PVB (polyvinyl butyral) interlayer. When impact occurs, the glass may crack but the interlayer holds the pane in the frame. That prevents wind and water from entering through a breached window, which is the failure that causes interior pressurization and roof loss during a hurricane.
Miami-Dade NOA / Florida Product Approval
Each configuration we sell carries a Miami-Dade Notice of Acceptance or Florida Product Approval number, issued per configuration. The approval is tied to the exact glass, frame, and size combination. We verify the applicable approval on your specific quote before you ever sign it, because no two bay window assemblies are exactly alike.
FBC / HVHZ Compliance
These units are engineered to Florida Building Code High-Velocity Hurricane Zone requirements. Tampa sits inside the HVHZ wind-borne debris region, which means the windows in your home must meet a higher bar than inland Florida. A decorative bay window from a big-box store won’t pass a Tampa permit review. These will.
TAS 201 / 202 / 203 Testing Context
HVHZ-rated products are tested under a protocol family: TAS 201 covers large-missile impact, TAS 202 covers cyclic wind-pressure loading, and TAS 203 covers forced-entry resistance. Products that carry an NOA have passed these tests in a certified lab. That’s the difference between a window that’s marketed as impact-rated and one that’s actually approved for a permit in Hillsborough County.
Design Pressure for Your Wind Zone
Every opening in your home has a required design pressure based on its elevation, exposure, and location on the structure. We order each bay or bow unit to the design pressure your wind zone demands, up to +/-100, and never higher. Over-specifying adds cost without adding safety. Under-specifying is worse. We match the number to the opening.
Energy Performance
Low-E and insulated glass options are available on all bay and bow configurations. Low-E coatings reduce solar heat gain through the large glass surface these units create. Insulated glass adds a second air space that improves comfort in rooms that face direct afternoon sun. We’ll help you pick the right glass package for each elevation during the estimate.
Color & Glass Options
Tampa’s housing stock leans toward warm neutrals, whites, and coastal tones. White and almond frames dominate on stucco Mediterranean and Craftsman homes in Seminole Heights, Palma Ceia, and Hyde Park. Bronze and black frames read sharper and work well on more contemporary builds or homes with dark trim accents. Tan is a quieter neutral that blends with sandy exterior palettes in waterfront neighborhoods like Davis Islands and Beach Park.
Glass selection should follow the room’s orientation, not just personal preference. Clear laminated impact glass lets in the most natural light and preserves true exterior views. Tinted glass cuts glare and solar heat in rooms that face west or south. Low-E insulated glass is the workhorse for energy performance: it reflects infrared heat while keeping the view reasonably neutral. For a bay window that wraps a breakfast nook and catches morning sun, clear or Low-E makes sense. For a west-facing bow in a formal living room, tinted or Low-E will pay off in afternoon comfort.
Installation by TruePane Windows & Doors in Tampa
We won’t pretend that a bay or bow window installs like a standard replacement window. It doesn’t. These are heavy, multi-panel assemblies with a seat board, a head board, and angled mullions that have to carry the entire projecting load. The rough opening has to be prepared correctly, the support cables or brackets have to be sized to the projection, and the whole unit has to be set level, plumb, and square before the first fastener goes in.
Our process starts with a pre-install inspection. We measure the opening, check the framing condition, and confirm the design pressure requirement for your elevation. Then we order the unit. Once it arrives, we set the assembly into the opening and secure it per AAMA 2400/2410 installation practice. We use AAMA 812 low-expansion foam around the perimeter, seal the exterior flange, and run a water test before we call the job done. Cleanup happens the same day.
We also know Tampa’s permitting reality. Hillsborough County and the City of Tampa both enforce HVHZ requirements, and your permit reviewer will want to see the NOA or Florida Product Approval for your specific configuration. We provide that documentation. Improper installation compromises the entire NOA-rated system. A bay window that’s fastened wrong will leak, sag, or fail under wind load no matter how good the glass is. That’s why this product belongs in the hands of a professional crew.
Tampa-specific factors we account for on every job: proximity to the bay and Gulf, exposure category on the site, and the condition of existing exterior wall framing in older homes. Many 1960s and 1970s Tampa homes have framing that was never designed for a heavy projecting unit. We reinforce where the engineer specifies and we don’t skip that step.
Frequently Asked Questions - Bay & Bow Windows
Each bay and bow unit is fabricated to the design pressure required by your wind zone, up to +/-100. The exact number depends on your home’s elevation, exposure, and the opening’s location. We confirm the required design pressure during our pre-install inspection and order the unit to match it. Call (813) 320-9346 and we’ll tell you what your specific opening requires.
Most custom bay and bow configurations land in 6 to 10 weeks from final measurement because these are fabricated to your opening, not pulled from warehouse stock. Glass type, finish, and the manufacturer line all affect the schedule. We’ll give you a realistic window at quote time. If you’re planning around a renovation, call us early in the process at (813) 320-9346 so the windows aren’t what hold up your timeline.
Yes. Tampa and Hillsborough County permit reviewers require the NOA or Florida Product Approval for your specific bay or bow configuration as part of the window permit submittal. We provide the correct documentation for your exact unit and match the product to the approval before you buy. If you’re pulling the permit yourself, we’ll hand you the paperwork. If we’re pulling it, we handle the submittal end to end.
Yes. Bay and bow windows are custom fabricated to the opening. You choose the projection depth, panel count, operable versus fixed side units, sill type, glass package, and finish. The limits are structural, not catalog-based. A deeper projection may require different support engineering, which is something we account for in the quote. Call (813) 320-9346 to talk through what your wall can carry.
Clean the frame tracks and weep holes a couple times a year so water drains properly and debris doesn’t build up. Use mild soap and water on the finish. Keep the exterior sealant bead intact and re-caulk when it shows cracking or separation. Inspect the support brackets or cables annually, especially after a major storm. If anything shifts or a panel begins to bind, call us before it becomes a leak. (813) 320-9346 for service.
Get a Quote - Bay & Bow Windows in Tampa
If you’re planning a bay or bow window in Tampa, don’t guess on design pressure, NOA paperwork, or installation quality. We’ll measure your opening, confirm your wind zone requirement, and give you a written line-item quote with exact glass and finish options. Estimates are free, and there’s no pressure. Call (813) 320-9346 to schedule your on-site measurement.
