AfterVLX 100 Bifold / Folding Door in Tampa, FL | TruePane Windows & Doors
The VLX 100 bifold door is a multi-panel aluminum folding system that opens a wall up to 20 feet wide. It turns a living room, kitchen, or lanai into one continuous space when the panels fold and stack against the side jamb. For Tampa homeowners doing indoor-outdoor living renovations, this is one of the most requested products we install. TruePane Windows & Doors is an authorized ViewLux installation partner, which means the product arrives factory-calibrated and our crew handles the install under the manufacturer’s warranty terms. Call (813) 320-9346 to schedule a free on-site measurement and quote.
Product Overview - VLX 100 Bifold / Folding Door

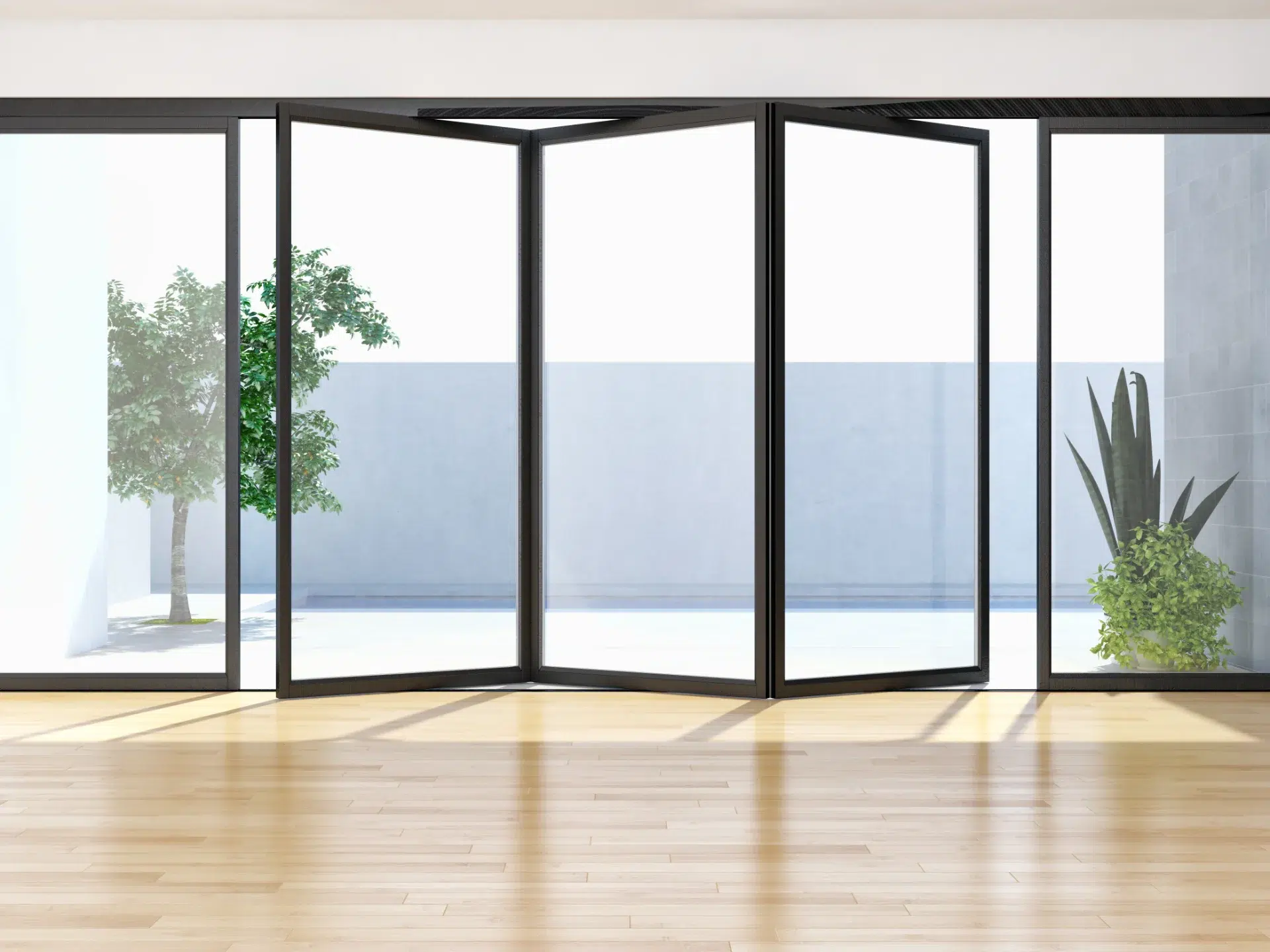

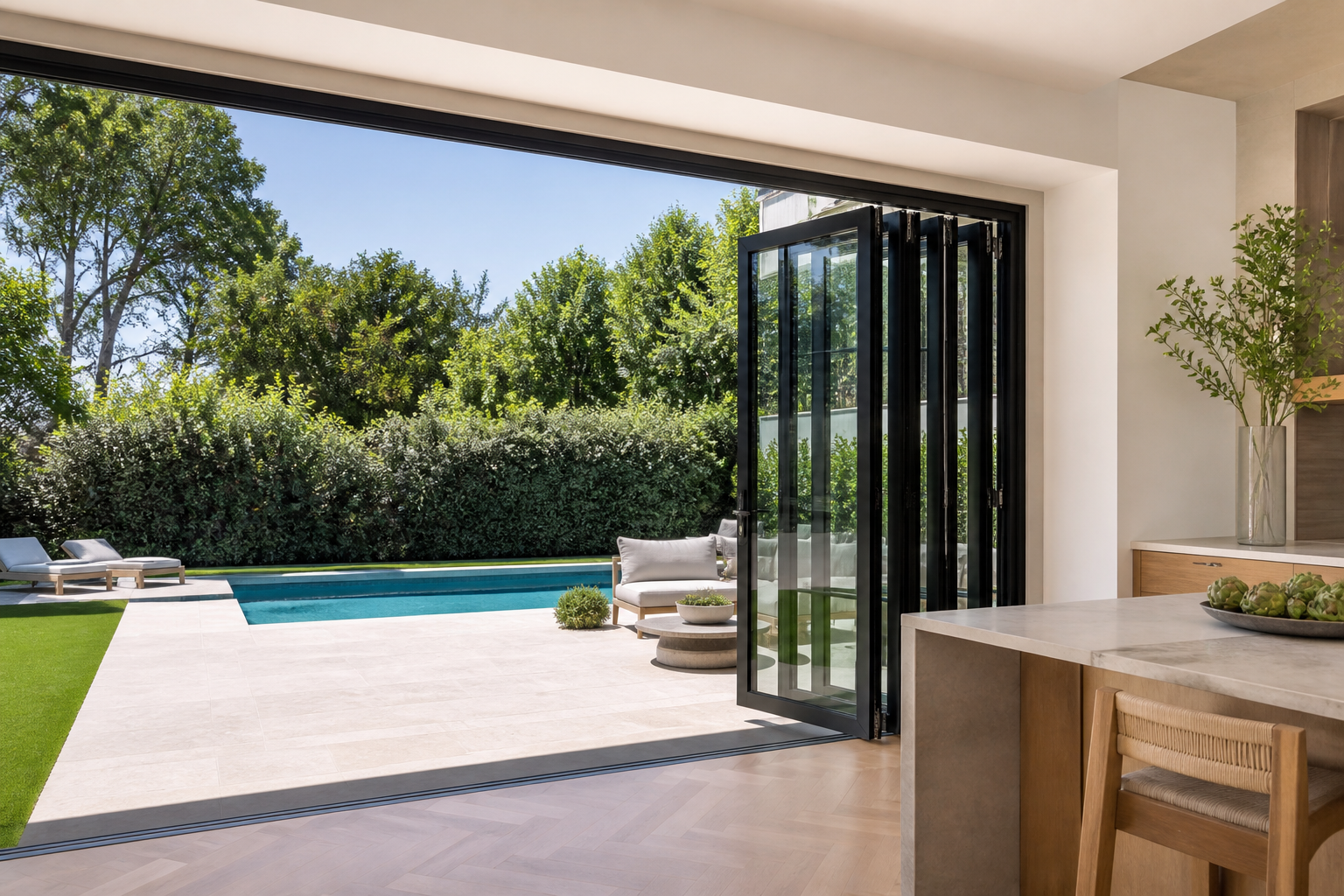

The VLX 100 is an accordion-style aluminum bifold built around one idea: remove the wall. The panels fold open on a top-hung track and stack flat against one side, so the opening is completely clear. No post in the middle, no fixed panel taking up glass area. That wall-to-wall opening is what makes it work for Tampa ranchers with pool decks, South Tampa bungalows opening onto patios, and Westchase homes where the kitchen backs up to the lanai.

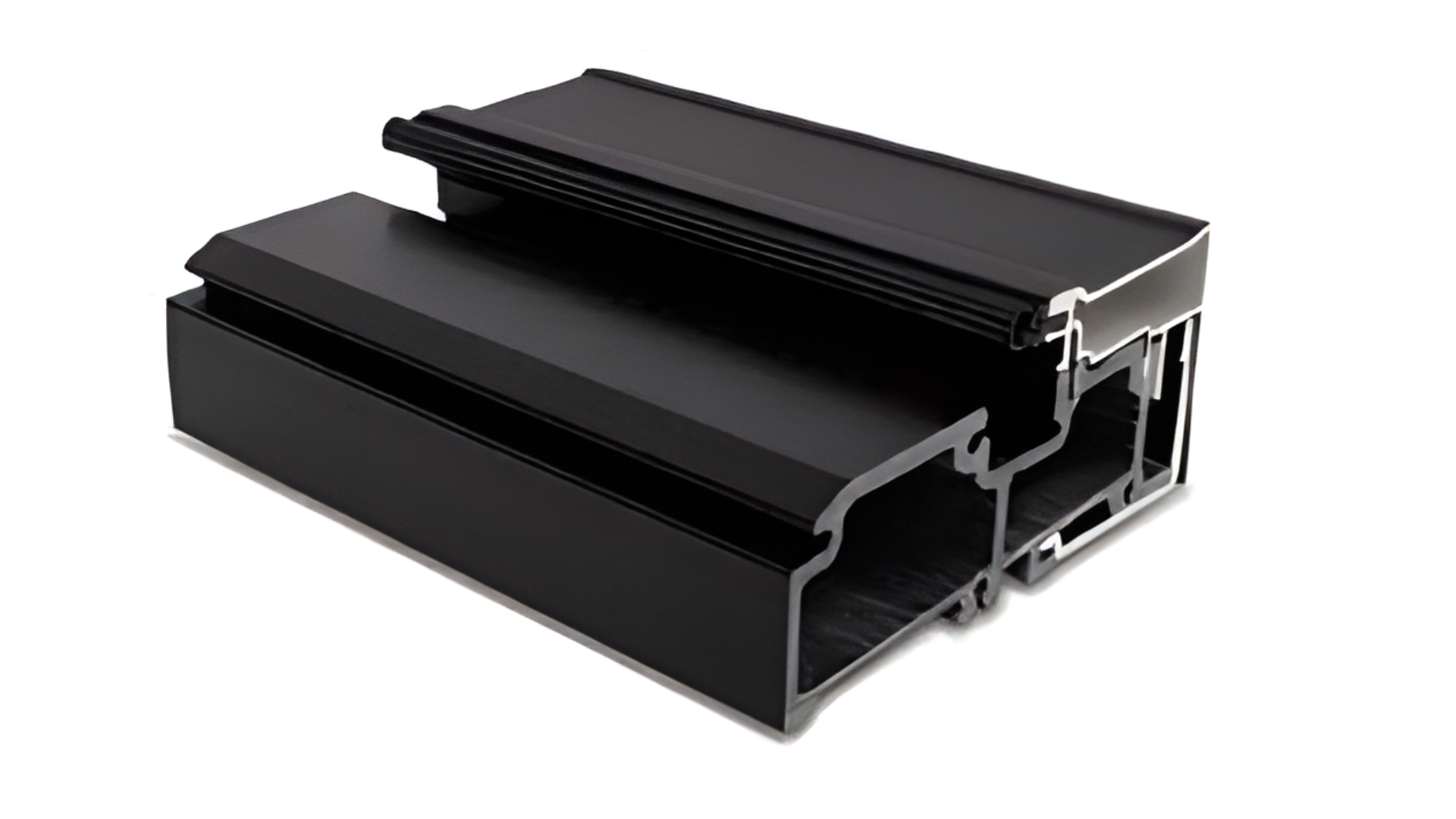

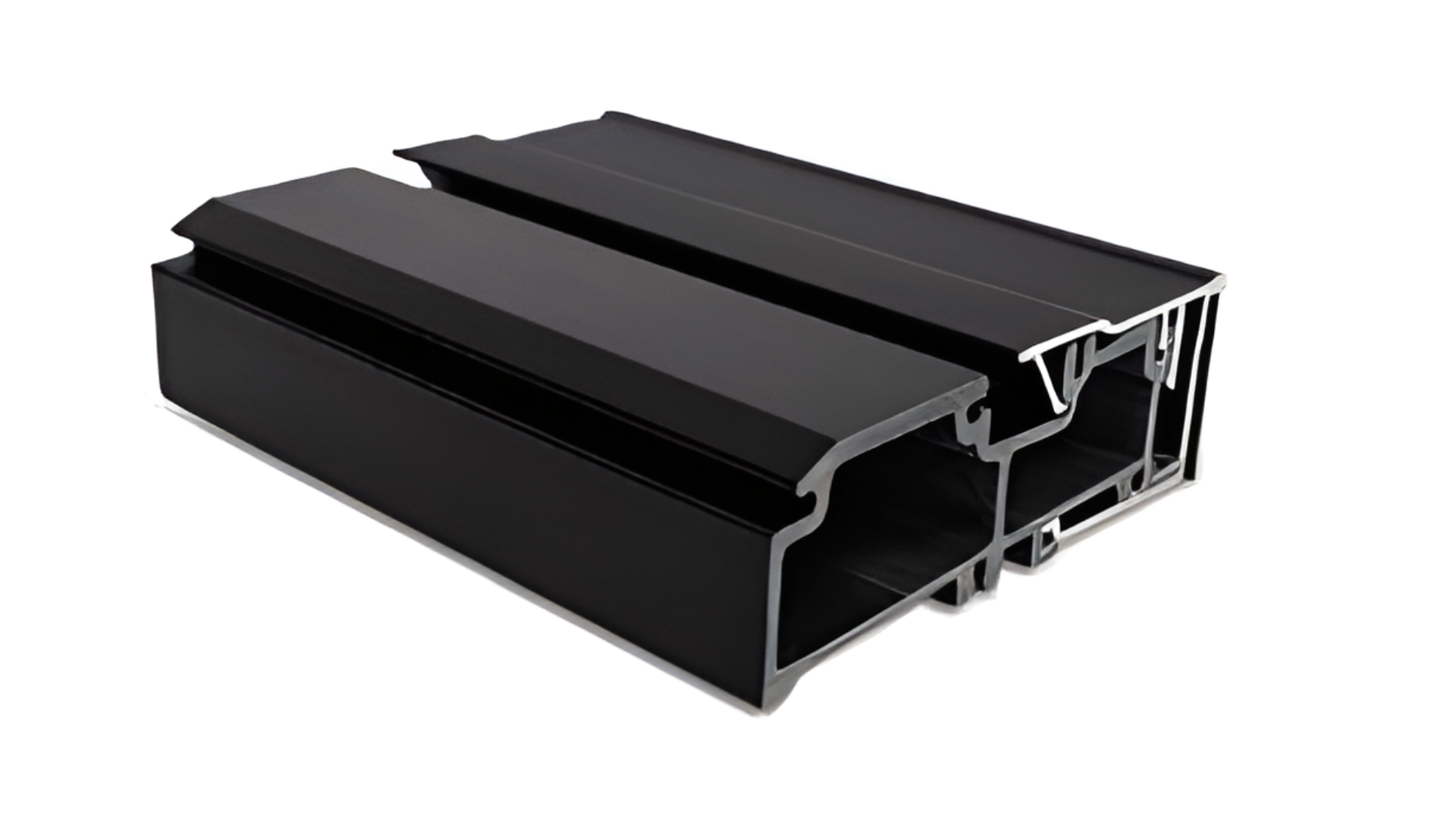

Aluminum is the structural core here. The wall thickness measures 0.098 inches, which is substantial enough to keep tall panels from flexing or sagging over years of Tampa heat and humidity. The 2.56-inch profile width keeps sightlines slim but still accommodates the hardware, rollers, and locking mechanisms inside the frame rather than bolted on as an afterthought. That’s the difference between a door that looks like a design feature and one that looks like a garage door on a house.
Buyers choose this series because it’s configurable. A 3-panel opening works for a normal patio opening. A 6-panel system spans that 20-foot maximum and turns an entire corner of the house into open air. In Tampa, where we spend ten months of the year wanting the outside to come indoors, the VLX 100 does exactly what a sliding glass door can’t: it disappears.
Technical Specifications
Specifications for the VLX 100 Bifold / Folding Door installed by TruePane Windows & Doors in Tampa:
- Frame wall thickness: 0.098 inches, engineered for structural rigidity across multi-panel spans.
- Profile width: 2.56 inches, balancing slim aesthetics with internal hardware capacity.
- Maximum span: 20 feet wide, configurable to fit smaller openings in 2 to 6 panel arrangements.
- Panel configurations: 2-Panel, 3-Panel, 4-Panel, 5-Panel, and 6-Panel folding layouts.
- Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, and Black Tint.
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
- Screen options: Retractable Screen or None.
- Performance standards: Thermal break technology with NFRC-rated energy performance; installed per AAMA 2400/2410.
Performance Features
Thermal Efficiency
Thermal Break Technology. The aluminum frame includes a thermal break that separates interior and exterior metal. This slows heat transfer through the frame itself, which matters in Tampa where an unbroken aluminum door radiates afternoon heat into the house. Choose Low-E glass and you get an NFRC-rated energy package that qualifies for most Florida building code energy calculations.
Acoustic Performance
Sound Control Ratings. Laminated glass adds a sound-dampening layer between two panes. For Tampa homes near Bayshore Boulevard, Dale Mabry, or I-275, that means traffic and street noise drops noticeably at the closed panel. It’s not recording-studio isolation, but it’s a meaningful difference over single-pane or standard double-pane glass.
Airtightness & Weather Seal
Sealed Panel Joints. Every interlocking panel edge carries its own weatherstripping profile. When the door closes, the panels compress against each other and the perimeter frame. The result is an airtight seal that blocks drafts, prevents conditioned air from escaping, and keeps Tampa humidity from working through the joints.
Waterproofing
Perimeter Sealant System. TruePane installs every VLX 100 with AAMA 812 low-expansion foam sealant on all perimeter joints. Combined with a proper sill pan and flashing detail, this is what keeps water out during Tampa’s summer downpours. The foam expands to fill voids without distorting the frame, which is a common installation mistake with cheaper expanding foams.
Wind Resistance
Wind-Load Rated. The VLX 100 is engineered for Florida’s wind-load requirements, and the laminated glass option is impact-resistant. For Tampa homes in hurricane-prone wind zones, we can specify laminated glass to meet debris-impact standards. The multi-point locking hardware also keeps panels rigid against the frame under pressure.
Security & Hardware
Multi-Point Locking. Each panel locks top and bottom into the track, with internal flush bolts that keep panels from being lifted or forced open. Because hardware sits inside the frame profile, there are no exposed screws or latches that corrode in Tampa’s coastal air. The folding mechanism rides on stainless-steel rollers rated for repeated daily cycling.
Color & Glass Options
The VLX 100 comes in six finishes. Premium Black anchors modern facades and works well with white stucco or light brick. Pure White matches traditional Tampa homes and keeps a seamless look with white window trim. Anodized Silver is the utilitarian choice: raw, metallic, and low-maintenance. Bronze reads warmer and hides water spots better, which is useful given Tampa’s hard water. Champagne leans contemporary and pairs well with coastal color palettes. Teak Wood is a powder-coated wood-look finish that gives the warmth of timber with none of the rot or termite risk in Florida’s climate.
Glass selection depends on orientation and proximity. Clear glass is the budget option and admits full daylight. Low-E is the upgrade we recommend for west-facing openings where Tampa’s afternoon sun beats in from 3pm until sunset. Tempered glass is safety-rated, and most code jurisdictions in Hillsborough County require it for doors. Laminated glass adds impact resistance and sound damping. Gray Tint and Black Tint reduce glare and solar heat gain without adding a visible window film.
Installation by TruePane Windows & Doors in Tampa
Every VLX 100 opening starts with a pre-install inspection. We measure the rough opening in three places, check the floor for level, and verify the header is structurally sound. If the substrate has rot or deflection, we address it before the door arrives. A bifold door cannot operate correctly on a slab that dips or a header that sags. These are the issues that turn a 30-minute installation into a warranty claim.
Our crew sets every unit level, plumb, and square to AAMA 2400 and 2410 installation tolerances. That standard matters more than people realize. A bifold door with a 1/8-inch out-of-square condition at the frame translates into misaligned panels, binding rollers, and uneven gaps between panels when closed. We set the sill, shim the frame, torque the fasteners, and check the reveal lines at multiple points before moving forward.
Perimeter sealing follows AAMA 812 guidelines with low-expansion foam on all joints, then a waterproofing detail at the sill and head. We run a water test on the closed unit, cycle the door through its full opening and stacking range, and check that the retractable screen (if ordered) clears the track. Cleanup includes removing all job debris and hauling off the old unit. In Tampa’s climate, the seal detail is not optional. Humidity, afternoon thunderstorms, and barometric swings all push water against the frame. A properly installed VLX 100 sheds that water without pooling at the interior floor line.
One more thing. ViewLux’s warranty is only valid when the door is installed by an authorized partner. We are one. That means if a panel roller fails or a finish issue develops, the warranty claim goes through cleanly. A door installed by a generalist or a handyman with no manufacturer authorization is not covered. That risk is not worth saving a few hundred dollars.
Frequently Asked Questions - VLX 100 Bifold / Folding Door
Lead time typically runs 4 to 6 weeks from the date we lock the order, which includes manufacturing and transit to our Tampa warehouse. Custom sizes, laminated glass, or specialty finishes can push that to 6 to 8 weeks. We recommend calling (813) 320-9346 once you have a rough opening measurement so we can confirm a current production slot before you plan construction around the door.
The VLX 100 with Low-E glass and thermal break technology can qualify for federal energy efficiency tax credits when installed as part of a qualifying exterior door replacement. Eligibility depends on the specific glazing package and your project’s total energy performance. We provide the NFRC documentation with every install so your tax preparer can verify the credit. Call us at (813) 320-9346 to discuss which glass package maximizes your rebate eligibility.
ViewLux provides a manufacturer warranty on the VLX 100 covering the frame, hardware, and glass for defects in materials and workmanship. The warranty is only valid when installed by an authorized ViewLux partner, which TruePane Windows & Doors is in Tampa. Our installation labor is also covered by our own workmanship warranty. Call (813) 320-9346 if you want to review the full warranty document for your specific panel configuration.
Yes, within the product’s engineering limits. The VLX 100 spans up to 20 feet wide, and panel counts can be configured from 2 through 6 panels to fit your exact opening. Height is also specified per opening. The 0.098-inch wall thickness and 2.56-inch profile width remain constant across custom sizes, so you get the same structural performance whether you’re ordering a 6-foot or a 20-foot system. Call (813) 320-9346 with your rough opening dimensions and we’ll generate a line-item quote.
Keep the bottom track free of sand, leaves, and debris, especially after summer storms. Wipe the frame down with mild soap and water every few months, and avoid abrasive cleaners that scratch the powder coat. Lubricate the rollers and hinges annually with a dry silicone spray. In Tampa’s salt-adjacent coastal air, an annual rinse of the exterior frame keeps salt residue from building up. That’s genuinely all the maintenance these doors need. If a roller does wear out, call (813) 320-9346 and we’ll replace it under warranty.
Get a Quote - VLX 100 Bifold / Folding Door in Tampa
TruePane Windows & Doors is ready to measure your opening and price your VLX 100 bifold project in Tampa. We’ll bring finish samples, walk through the glass options for your exposure, and give you a written line-item quote before you commit to anything. Call (813) 320-9346 to schedule your free on-site measurement.
Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner in Tampa, FL.
