Geometric & Shaped Windows

Geometric & Shaped Windows in Tampa, FL | TruePane Windows & Doors

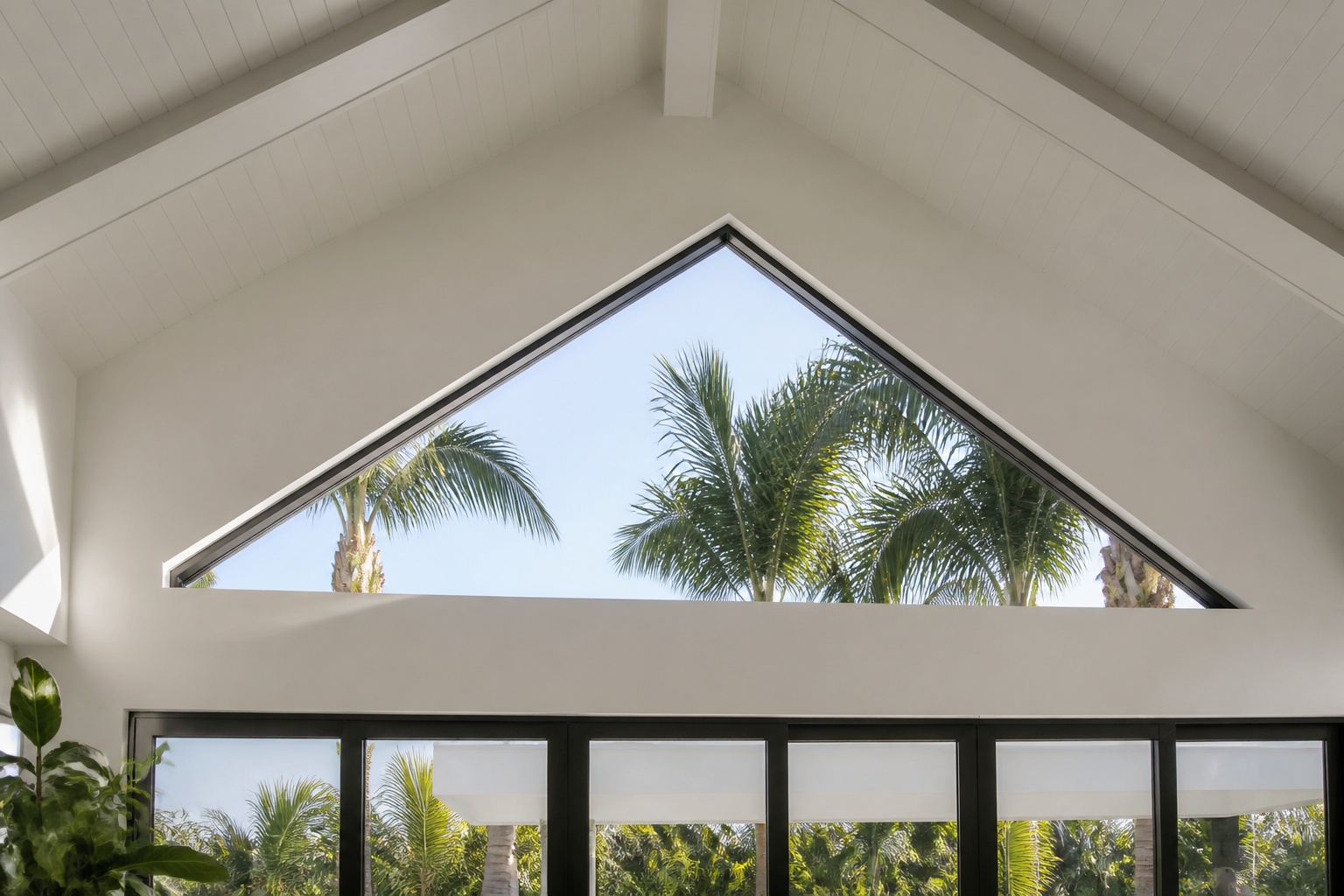

Geometric and shaped windows bring something rare to Florida architecture: genuine character. Triangular transoms over a front entry, hexagonal accents in a stairwell, curved glass wrapping a turret, octagonal portals framing the bay. And here’s the problem most Tampa homeowners run into: the big-box catalog shapes stop being hurricane-rated the moment you step outside a standard rectangle. TruePane Windows & Doors solves that. We custom-fabricate triangular, hexagonal, octagonal, and curved impact-glass windows engineered to Florida Building Code HVHZ requirements, then install them to AAMA 2400/2410 practice across Tampa, from Palma Ceia to Westchase. Call (813) 320-9346 to talk shapes, specs, and lead times.

Call (813) 320-9346

Product Overview - Geometric & Shaped Windows

Geometric and shaped windows are custom-fabricated impact-glass configurations built to your exact opening. Triangular, hexagonal, octagonal, arched, radius, and curved profiles all fall under this umbrella. They typically appear where standard rectangles can’t do the architectural job: above entry doors, at staircase landings, in gable ends, in turrets and bay bump-outs, and along curved walls in Florida coastal and Mediterranean-style homes. In Tampa, where homes run the gamut from 1920s bungalows in Seminole Heights to new Mediterranean builds on Davis Islands, shaped windows are often the detail that makes the elevation work.

What makes our Geometric & Shaped Impact Series different is that we don’t ask you to choose between the shape and the storm rating. Every configuration is fabricated with laminated impact glass, set in aluminum or vinyl frames, and tested under the TAS 201/202/203 protocol family. The frame engineering accounts for the reality that non-rectangular shapes concentrate stress differently than squares and rectangles. Corners, apexes, and curved runs get reinforced joinery and matched design pressure ratings. You get architectural detail without sacrificing wind-zone protection, and the entire assembly is sized and fabricated to your measured opening, not forced into a stock size.

TruePane Windows & Doors installs these systems throughout the Tampa Bay area, and our install crews are trained on HVHZ-specific anchoring and sealing for non-standard geometries. These are not drop-in replacements. They are project windows, and they deserve a project-level installation partner.

Technical Specifications

Here’s what goes into every Geometric & Shaped Impact Series window we order and install in Tampa:

• Frame materials: Aluminum or Vinyl. Aluminum for slimmer sightlines and larger spans; vinyl for thermal performance and coastal salt-air tolerance.
• Maximum size: Custom fabricated to order. We size each unit to your measured rough opening, including oversized configurations where engineering permits.
• Glass options: Laminated impact glass with PVB interlayer, Low-E insulated glass, tinted glass, clear glass, or combinations of the above.
• Color and finish options: White, Almond, Bronze, Black, Tan. Powder-coat or factory-applied finishes matched to your surrounding window and door package.
• Design pressure: Matched to your specific Tampa wind zone, up to +/-100. We never overstate a rating, and we never spec a unit below what your permit requires.
• Compliance documentation: Miami-Dade NOA and Florida Product Approval numbers available per configuration. Verify on your specific quote.

Hurricane & Compliance Performance

Laminated Impact Glass
The glass package uses a PVB (polyvinyl butyral) interlayer bonded between panes. Under impact, the glass may crack, but it holds in the frame rather than shattering into the room. That’s the core of Florida impact protection, and it’s standard on every shaped configuration we quote.

Miami-Dade NOA / Florida Product Approval
Each configuration carries Notice of Acceptance and Florida Product Approval numbers issued per configuration. We pull the specific approval documentation for your exact shape, size, and frame material and include it with your quote and permit package. No generic approval language, no surprises at plan review.

FBC / HVHZ Compliance
Every Geometric & Shaped unit we install in Tampa is engineered to Florida Building Code High-Velocity Hurricane Zone requirements. HVHZ is the stricter of Florida’s two compliance tiers, and Tampa falls under it. We treat that as the floor, not the ceiling.

TAS 201 / 202 / 203 Testing Context
TAS 201 covers large-missile impact. TAS 202 covers cyclic wind-pressure loading, which simulates the repeated pressure fluctuation of a hurricane passing over the structure. TAS 203 covers forced-entry resistance. These three protocols are the family HVHZ-rated products are tested under in Florida, and they apply to shaped configurations just as they do to rectangles.

Design Pressure for Your Wind Zone
Design pressures are matched to your specific Tampa wind zone, up to +/-100, and never higher. We won’t sell you a unit rated beyond what your site requires, and we won’t install one below it. Your quote includes the design pressure calculation for your exact address and opening.

Energy Performance
Low-E and insulated glass options are available on shaped configurations where the profile allows. Florida heat is brutal on south-facing and west-facing shaped glass, and Low-E coatings reduce solar heat gain without changing the visual character of the window. Ask us to compare clear versus Low-E for your orientation.

Color & Glass Options

Five finish options keep these windows flexible across Tampa’s architectural spectrum. White and Almond read clean on the bright coastal and Key West-style homes you see in South Tampa and Beach Park. Bronze and Black add definition on Mediterranean elevations, especially against stucco in warm tones, and they hold up visually on modern builds in the Channel District. Tan works where the trim package leans earthy or where the surrounding windows carry a factory tan finish.

Glass selection depends on what the window is doing. Clear laminated impact glass is the default for light and view, especially on curved units facing the water. Tinted glass cuts glare on west-facing octagons and transoms that catch afternoon sun. Low-E insulated glass combines impact protection with energy performance, which matters in Tampa summers when shaped glass on an upper gable acts like a solar collector. Most of our Geometric & Shaped projects mix glass types across the house: clear on the north and east elevations, Low-E tinted on the south and west.

All five finishes pair with any of the four glass packages, and we’ll bring samples to your Tampa home when we measure, so you’re choosing against your actual stucco, trim, and roof color, not a swatch in a showroom light box.

Installation by TruePane Windows & Doors in Tampa

A shaped impact window is only as good as the opening it’s set into. That’s the central truth of geometric window installation. The NOA rating applies to the factory-assembled unit. The building envelope around it is a field installation, and in Tampa’s HVHZ wind zone, field installation is where leaks, air intrusion, and frame racking actually happen. We install per AAMA 2400/2410 practice and follow AAMA 812 low-expansion foam perimeter sealant specification, because shaped openings fail at the perimeter more often than anywhere else.

Every TruePane install starts with a pre-installation inspection of the rough opening. We check opening dimensions against the fabrication sheet, verify the substrate is sound, and confirm flashing integration points before we set a single screw. Then the unit goes in level, plumb, and square, anchored through the flange or frame per the product approval documents for that exact configuration. Curved and angled profiles get extra attention at the apex and radius points, where stress concentrates under cycling wind pressure. AAMA 812 foam is applied at the perimeter, followed by tooled sealant at the exterior, then a water test on the critical junction points. We wrap with interior trim as specified, and we leave the site clean.

One Tampa-specific note: permitting. HVHZ jurisdictions in the Tampa Bay area require product approval documentation at plan review, and shaped windows are scrutinized harder than standard rectangles because of their geometry. We handle the approval submittals with your permit package and coordinate with your contractor or building department. Improper installation compromises the NOA-rated system. Don’t let a generalist crew set a hexagonal impact window and hope the sealant holds at the first tropical storm. Call the crew that does this shape of work in Tampa all year.

Frequently Asked Questions - Geometric & Shaped Windows

What wind zone or design pressure is the Geometric & Shaped Window rated for? Design pressures are matched to your specific Tampa wind zone, up to +/-100, and never higher. We calculate the requirement for your exact address and opening dimensions during the estimate, and we include that figure on your quote. Call (813) 320-9346 for a free design pressure calculation on your project.

What is the lead time on custom shaped windows? Custom geometric and shaped windows are fabricated to order, so lead times run longer than stock rectangular windows. Typical lead times in Tampa run several weeks depending on shape complexity, glass package, and finish. We confirm a current lead time window at quote, not afterward. Call (813) 320-9346 and we’ll tell you what the factory is running right now.

Does my Tampa permit require a Miami-Dade NOA or Florida Product Approval submittal? Yes, in most HVHZ jurisdictions around Tampa, your permit package must include the Miami-Dade NOA or Florida Product Approval documents for the specific shaped configuration you’re installing. We pull those with your quote and include them in the permit submittal. Call (813) 320-9346 for help with your specific project.

Can I customize the size or configuration of my shaped window? Yes. Every Geometric & Shaped Impact Series unit is custom-fabricated to your measured opening. That includes exact apex angles on triangles, radius points on arched units, chord dimensions on octagons, and the curve radius on bowed or curved glass. We measure in person and confirm every dimension before order release. Call (813) 320-9346 to schedule a measurement in the Tampa area.

How do I maintain the frame on a shaped impact window? Clean the frame with mild soap and water, avoid abrasive cleaners, and inspect the perimeter sealant annually and after any named storm. Salt air near Tampa’s coastal neighborhoods accelerates sealant wear, so a visual check at the top and bottom joints costs five minutes. If you catch a void early, it’s a recaulk, not a re-install. Call (813) 320-9346 if you spot a gap, and we’ll send a Tampa tech out.

Get a Quote - Geometric & Shaped Windows in Tampa

Every shaped window project starts with a measurement. Tell us the shape, the opening, the glass and finish direction, and we’ll schedule a free on-site measurement at your Tampa home. We’ll bring the approval documents, the finish samples, and a straight answer on lead time. Call (813) 320-9346 to start the quote.

Written by the team at TruePane Windows & Doors, serving Tampa, FL and the greater Tampa Bay area.
